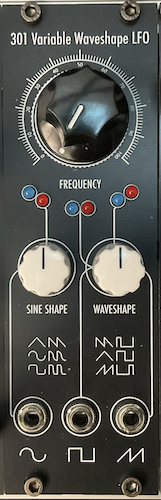

301 Variable Waveshape LFO
Super Flexible Analogue LFO
v0.1
Specifications
| Parameter | Value |
|---|---|
| Width | 8HP |
| Depth | ~15mm skiff friendly |
| +12 Current | - |
| -12 Current | - |
| +5 Current | 0mA |
Features
- Three adjustable waveform outputs (sine, square, triangle)
- Sine can be overdriven and turned into smooth saw and ramp waves
- The pulse width of square can be adjusted
- Triangle wave can be turned to saw and ramp waves
Quirks and Problems
- Replaced 100R resistor with 300R resistor
- Minimum frequency is 0 (could be good or bad depending on your needs)
- Actually works great!
- Edit: I will consider adding a resistor to make the minimum frequency greater than 0 as otherwise the low frequencies don't work so well.
