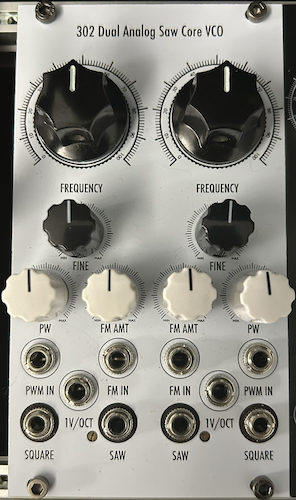

302 Dual Analog Saw Core VCO
Dual Analog Saw Core VCOs based on Moritz Klein's Design
v0.1
Specifications
| Parameter | Value |
|---|---|
| Width | 14HP |
| Depth | ~35mm max. skiff friendly |
| +12 Current | - |
| -12 Current | - |
| +5 Current | 0mA |
Features
- Dual Oscillator Design
- FM and PWM modulation inputs
- Good 1V/Oct capabilities over several octaves
- Coarse and fine tune frequecy knobs
Quirks and Problems
- Fine tune knob is placed the wrong way
