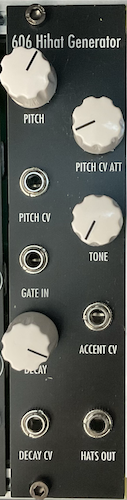

606 Hihat Generator
Hihat Generator based on Moritz Klein's Design
v0.1
Specifications
| Parameter | Value |
|---|---|
| Width | 6HP |
| Depth | ~35mm skiff friendly |
| +12 Current | - |
| -12 Current | - |
| +5 Current | 0mA |
Features
- Authentic 606/x0x style Hihat
- Manual and CV control over Pitch
- Bridged-T bandpass filter as Tone
- CV control over Decay
- Accent CV as offset for internal VCA
Quirks and Problems
- Pitch adjustment sounds weird, and FM is also weird
- Decay can only be adjusted with a dummy cable connecting to the Decay CV input
- Hihat sound has a lot of low end, frequency of high pass filter is not high enough
