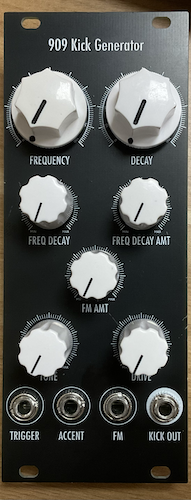

909 Kick Generator

909-0.1-1

Kick Generator based on Moritz Klein's Design

v0.1

Specifications

Parameter Value
Width 8hp
Depth ~15mm skiff friendly
+12 Current -
-12 Current -
+5 Current -

Features

  • Authentic 909/x0x style Kick
  • Manual and CV control over Pitch
  • Tone and Drive controls for a variety of kick flavours
  • Decay for frequency and amplitude
  • Accent CV as offset for internal VCA

Quirks and Problems

  • Works fine, Tone knob can be considered backwards (cw = duller sound, ccw = brighter sound)
  • Does not trigger the same with all trigger signals, weak triggers can lead to weak sound.
