Faderbanks

A series of macro faders with different channel numbers

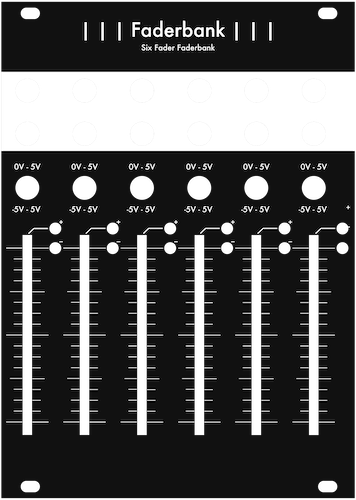

6ch

Specifications

Parameter	Value
Width	18HP
Depth	~15mm skiff friendly
+12 Current	-
-12 Current	-
+5 Current	0mA

Features

• 6 channels of macro faders
• Toggleable +5v unipolar/±5v bipolar output voltage
• Two outputs per channel
• Bipolar LEDs to visualize output

Quirks and Problems

• not built yet
